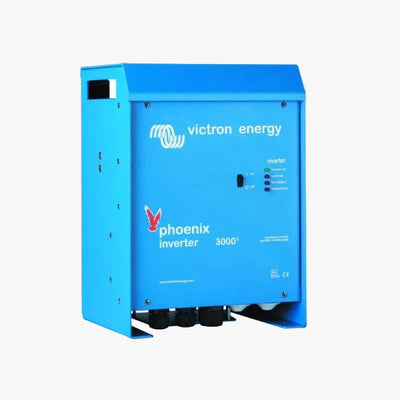

Victron Phoenix 12V 3000W pure sine wave power inverter
Victron Phoenix 12V 3000W inverter front and side view
Victron Phoenix 12V 3000W inverter angled view

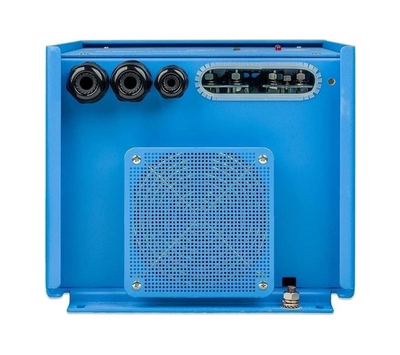

Victron Phoenix 12V 3000W inverter connection panel

Vendor:Li ion Stock

Victron Phoenix 12V 3000W Pure Sine Power Inverter VE.Bus PIN123020100

Sale price$1,299.00Regular price $1,799.99

The Victron Phoenix 12V 3000W is a high-power pure sine wave inverter that converts your 12V battery bank into a full 120V AC power source. 3000VA continuous output with ~6000W peak handles everything from power tools to air conditioners. VE.Bus communication enables up to 6 units in parallel (18kVA) or three-phase configuration for large installations.

Hurry, only 2 items left in stock!

Pairs well with

Delivery typically takes 3–7 business days after shipping, depending on your location.

Every Dakota Lithium LiFePO4 battery includes a full manufacturer 11-year warranty.

Orders $600+ ship free across Canada & the US.

Product Details

Description

The Victron Phoenix 12V 3000W is a high-power pure sine wave inverter that converts your 12V battery bank into a full 120V AC power source. 3000VA continuous output with ~6000W peak handles everything from power tools to air conditioners. VE.Bus communication enables up to 6 units in parallel (18kVA) or three-phase configuration for large installations.

Important: Inverter Only

This is a pure inverter — it does NOT include a built-in battery charger or transfer switch. If you need inverter + charger + transfer switch in one unit, look at the Victron MultiPlus 12/2000 or MultiPlus-II 12/3000 instead. The Phoenix is for systems where charging is handled separately (solar, DC-DC, dedicated charger).

Applications

  • Large off-grid systems — cabin, home backup, remote power where high AC loads are required
  • Marine liveaboard — run full galley appliances, AC, and entertainment from battery bank
  • RV with heavy AC loads — air conditioner, microwave, induction cooktop from lithium bank
  • Mobile workshop — power tools, compressors, welders from vehicle battery system
  • Commercial/industrial — parallel multiple units for 6-18kVA systems

Compatible Batteries

  • Dakota Lithium DL+ 12V 320Ah — recommended minimum for sustained 2500W loads
  • Dakota Lithium 12V 100Ah (×2-4) — parallel bank for extended runtime
  • Dakota Lithium DL+ 12V 135Ah — good match for moderate loads

At 2500W from 12V, this inverter draws ~220A. A large battery bank (200Ah+) is essential for meaningful runtime.

Features & Benefits
  • 3000VA / 2500W continuous — powers large appliances: microwave, AC, power tools, hair dryer, coffee maker simultaneously.
  • Pure sine wave output — safe for sensitive electronics, medical equipment, and variable-speed motors.
  • VE.Bus communication — parallel up to 6 units (18kVA) or configure three-phase for commercial installs.
  • ~6000W peak power — handles motor startup surges from compressors, pumps, and large tools.
  • 93-95% efficiency — minimal energy loss from battery to appliance.
  • 5-year Victron warranty — global service network, proven marine and off-grid reliability.

Technical Specifications

Key Details
Continuous Output

3000VA / 2500W

Peak Power

~6000W (short duration)

Input Voltage

12V DC (10.5-17V range)

Output Voltage

120V AC, 60Hz

Waveform

Pure sine wave

Communication

VE.Bus

Parallel

Up to 6 units (18kVA total)

Three-Phase

Yes (with 3 units)

Efficiency

~93-95% peak

Built-in Charger

NO — inverter only

Transfer Switch

NO — inverter only

Warranty

5 years (Victron standard)

Warranty

Warranty Details

5-year Victron Energy warranty — global service in 80+ countries. UL listed for North American installations. CE, ECE R10/6 certified.

Frequently Asked Questions

Why choose this over the MultiPlus?

The Phoenix is a dedicated inverter with no charger overhead — higher efficiency for pure inverter duty, lower cost, and parallel to 6 units vs 4 for MultiPlus. Choose the Phoenix when your charging is handled by separate equipment (solar controller, DC-DC charger, dedicated AC charger). Choose the MultiPlus when you want everything in one box.

What size battery bank do I need?

At full 2500W load from 12V: 100Ah lasts ~30 minutes, 200Ah ~1 hour, 320Ah ~1.5 hours. For typical mixed loads (500-1000W average), double those estimates. A 200Ah+ bank is the practical minimum for this inverter.

Can I parallel this with a MultiPlus?

No. VE.Bus parallel only works between identical units. You can parallel multiple Phoenix 12/3000s together, but not mix Phoenix with MultiPlus. They can coexist in a system via a GX device but won't share load.
