Description

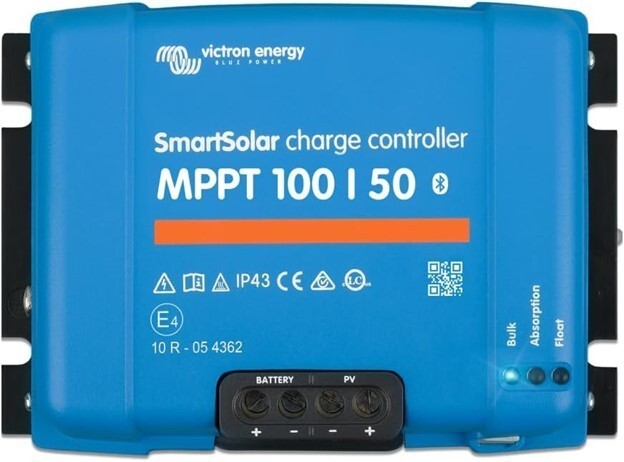

Victron Smart Solar MPPT 100/50 Solar Charge Controller
Power that keeps going
☀️ MPPT Charging🔋 12/24V Auto⚡ 50A Output📶 Built-In Bluetooth💧 IP43 Rated🛡️ 5 Year Warranty
Victron Smart Solar MPPT 100/50 – Efficient solar charging for 12V and 24V battery systems
The Victron Smart Solar MPPT 100/50 Solar Charge Controller is designed to maximize solar energy harvest and deliver efficient, reliable charging for 12V or 24V battery systems. With automatic system-voltage detection, a maximum PV open-circuit voltage of 100V, and up to 50A charge current, this controller is a strong choice for solar installations that need dependable performance and intelligent charge management.
Built-in Bluetooth enables easy setup, monitoring, and performance tracking on your smartphone or tablet via the Victron Connect app. Compact in size yet powerful in output, the Smart Solar MPPT 100/50 is ideal for RV, marine, off-grid, and backup power applications where efficient solar charging and trusted system control matter most.
Complete Technical Specifications
| Product | Victron Smart Solar MPPT 100/50 Solar Charge Controller |
| Brand | Victron Energy |
| MPN | SCC110050210 |
| System Voltage | 12/24V auto-select |
| Maximum PV Open Circuit Voltage | 100V |
| Maximum Charge Current | 50A |
| Bluetooth | Built-in |
| Weight | 2.87 lbs |

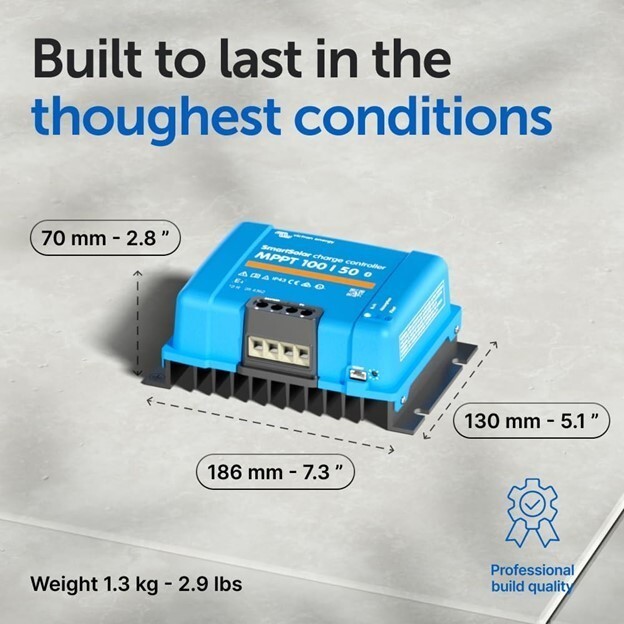

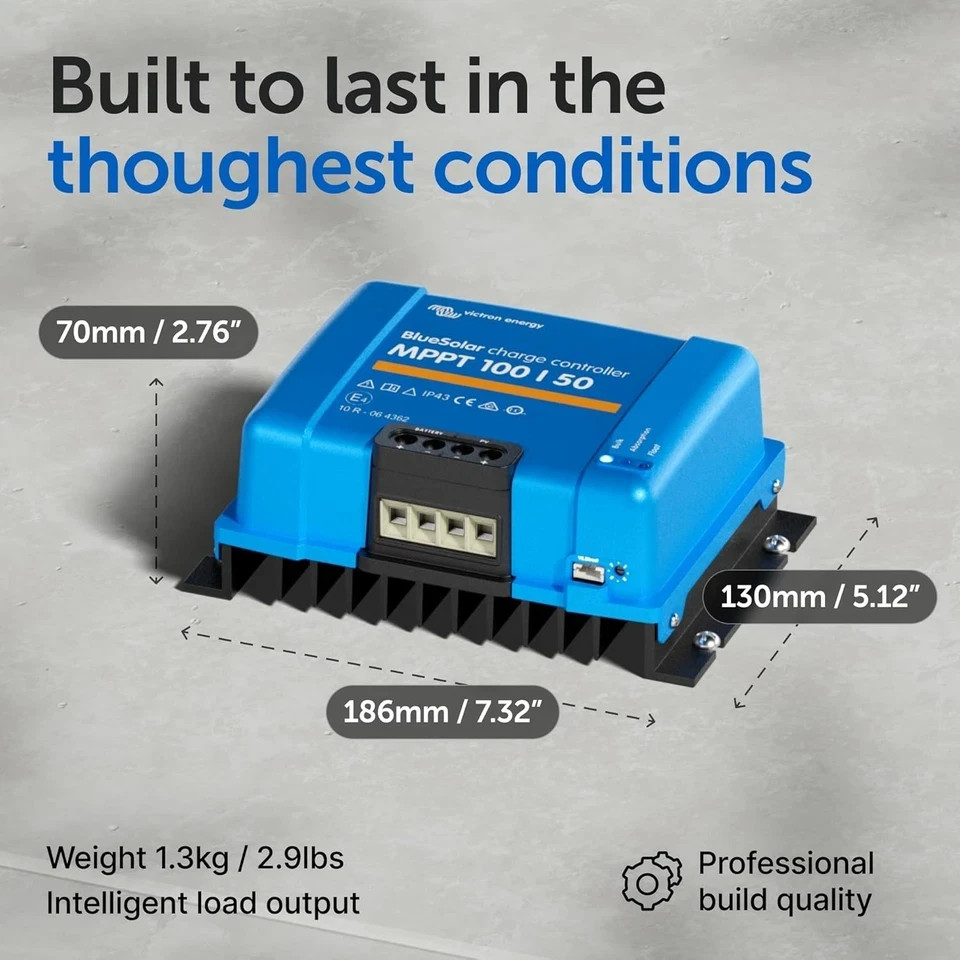

| Dimensions | 5.1 x 7.3 x 2.8 inches |
| IP Rating | IP43 |
| Controller Type | MPPT solar charge controller |
| Application | Solar charging for 12V and 24V battery systems |
| Warranty | 5 Years |
Advanced Features & Technology
- MPPT Solar Charging: Maximizes solar harvest by continually optimizing the voltage and current coming from your solar panels.
- 12V/24V Auto Detection: Automatically configures itself for either 12V or 24V battery systems for easier installation.
- 100V PV Input Capability: Supports solar arrays with up to 100V open circuit voltage.
- 50A Charge Output: Delivers strong charging performance for medium to larger solar battery setups.
- Built-In Bluetooth: Monitor performance, review history, and adjust settings wirelessly using the Victron Connect app.
- Compact Form Factor: Small footprint makes installation easier in tight electrical compartments.
- IP43 Rated: Suitable for protected indoor installations and helps resist dust and light moisture exposure in the proper mounting orientation.
- Victron Reliability: Backed by Victron Energy’s trusted engineering and 5-year warranty support.
Charging Guidance
- For 12V and 24V systems, this controller automatically detects the system voltage during setup.
- Observe PV voltage limits: the maximum solar panel open-circuit voltage should not exceed 100V.
- Battery charging output: Supports up to 50 amps of charge current, depending on system configuration and solar input.
- Use Bluetooth monitoring: Built-in Bluetooth makes setup and ongoing monitoring simple without needing extra accessories.
- Install in a protected area: IP43 rating is best suited to protected installations away from direct weather exposure.
- Match your system correctly: Always confirm battery bank voltage and solar array specifications before installation.
Ideal Applications
- 🚐 RV & Camper Solar: A great choice for managing solar charging in travel trailers, camper vans, and motor homes with 12V or 24V battery systems.
- ⛵ Marine Power Systems: Reliable solar charging control for boats and marine battery banks where efficient power management is important.
- 🏕️ Off-Grid Cabins: Well-suited for remote energy systems that need smart solar charging and dependable battery support.
- 🔋 Backup & Utility Systems: Useful for backup power, equipment sheds, and other solar-powered installations requiring intelligent charge control.
Important Notes
- Designed for solar charging systems: This is a solar charge controller, not a battery charger or inverter.
- 12V/24V auto-select only: Ensure your battery bank is compatible with the controller’s supported system voltages.
- Do not exceed the PV open-circuit voltage of 100V: Exceeding the input limit can damage the controller.
- Protected installation recommended: IP43 rating is intended for sheltered mounting locations.
- Warranty coverage: Backed by Victron Energy’s 5-year warranty for added peace of mind.
What’s in the Box
- Victron Smart Solar MPPT 100/50 Solar Charge Controller
- An efficient and dependable solar charging solution for 12V and 24V systems.
