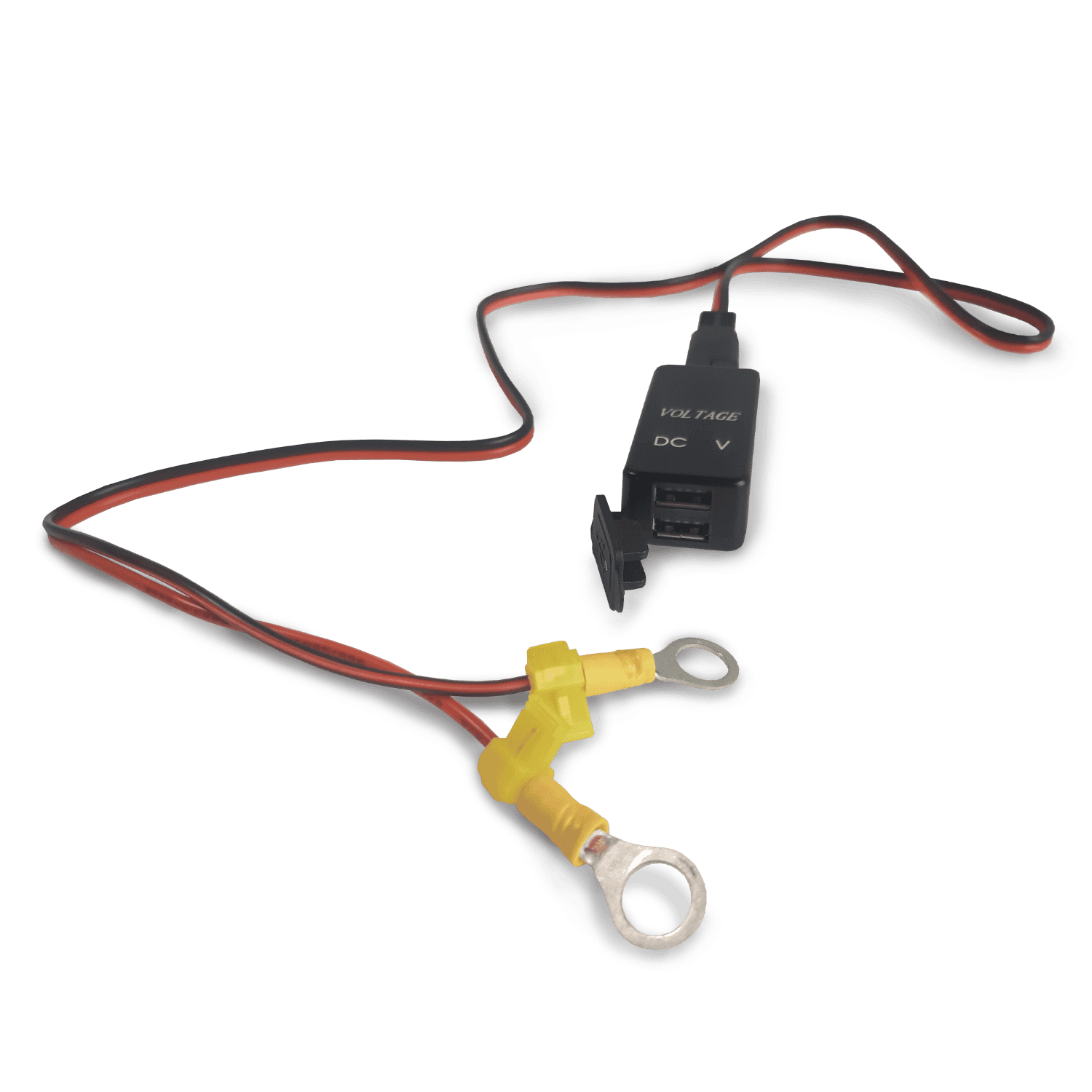

USB Phone Charger, Voltmeter, & Terminal Adapter Wiring Kit

Charge your cellphone or other electronics on the go by connecting these two USB charging ports, a voltmeter, and other terminals to any Dakota Lithium battery.

Charge your cellphone or electronics on the go by connecting these two USB charging ports and other terminals to any 12V Dakota Lithium battery. This handy wiring kit is multi-purpose, allowing you to charge electronics via USB ports, check your battery voltage with the voltmeter, adapt F2 terminals to universal ring terminals or SAE sockets (or vice versa), and run multiple devices off a single battery – all at the same time! F2 spade socket terminals fit our 7Ah, 10Ah, or 18Ah batteries, allowing you to connect additional electronics to the ring terminals and charge them via the USB ports. The ring terminals can attach to the DL 23Ah, 54Ah, or 100Ah battery and are thin enough to stack on top of the ring terminals on your primary wiring, allowing you to charge personal electronics off of the USB ports while running your main thing. This is a simple, useful, and creative DIY hack from one of our engineers. Your kit is built upon order. Please allow for a 1-3 day lead time.

• Connections

  Adds 2 USB ports to charge your electronic devices, F2 Spade Terminals, ring terminals, and SAE socket.

• Dual USB charging and voltage readout

  Charge two separate USB devices AND run your main electronics simultaneously. Monitor battery charge level in real time.

• Installation

  Easily attach the voltmeter in seconds. Use the F2 spade socket terminals to connect to a 7Ah, 10Ah, or 18Ah Dakota Lithium battery. Use the ring terminals to attach to a 23Ah, 54Ah, or 100Ah Dakota Lithium battery.

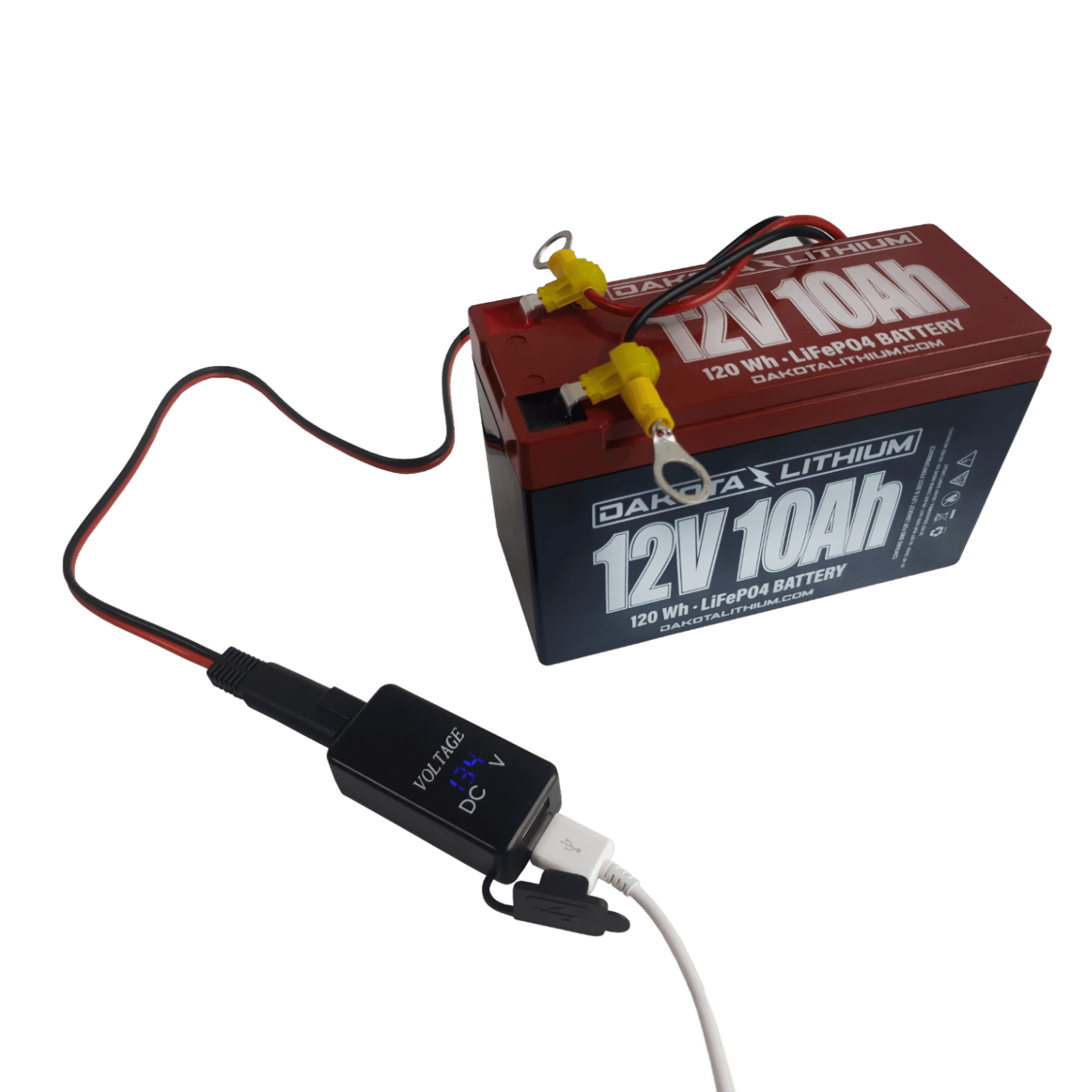

• F2 Spade Socket to Ring Terminal Adapter

  Fits the terminals on Dakota Lithium 7Ah, 10Ah, or 18Ah batteries.

• Ring Terminals to SAE socket

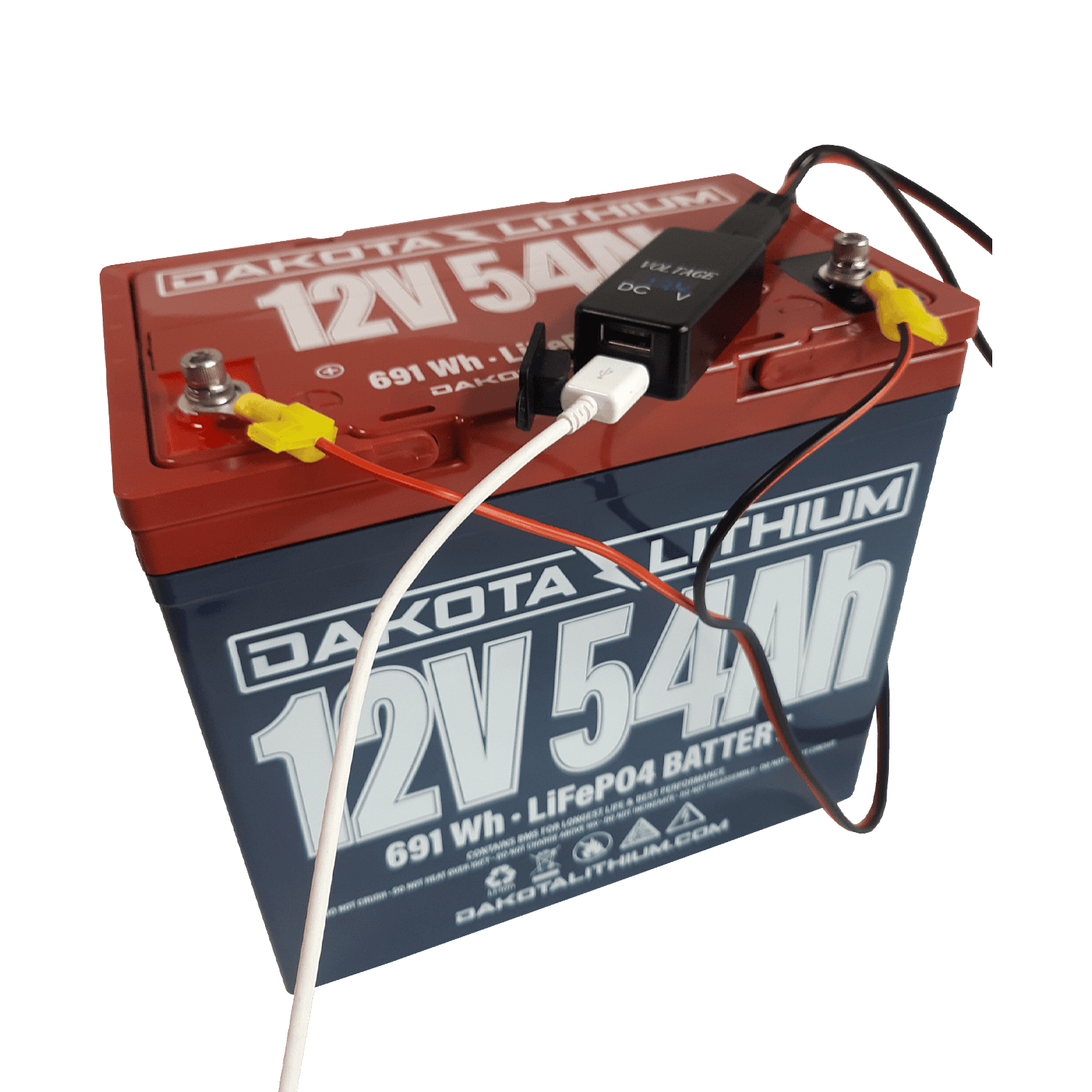

  Use the ring terminals to attach to a 23Ah, 54Ah, or 100Ah Dakota Lithium battery. Charge your personal electronics via the USB charging ports, or remove the volt meter to connect to the SAE socket.

• Operate multiple devices off a single battery

  2 USB charging ports, 1 set ring terminals, 1 set F2 Spade Socket terminals. Remove the voltmeter to access the SAE socket.

• Max 10 Amps

  Wiring is rated at 10 amps max. Optimal for small electronics like fish finders, household electronics, cameras, cell phones, etc. Not appropriate for electric motors.

• SAE Socket Plug

  Remove the voltmeter to use the SAE socket plug
