Description

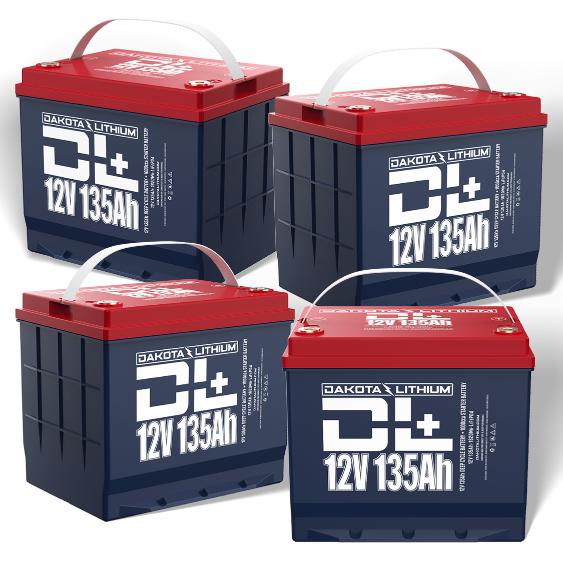

The DL+ 48V 135Ah Golf Cart Battery Set replaces your entire golf cart battery bank with four lightweight DL+ 12V 135Ah batteries wired in series. At 108.8 lbs total (vs 384 lbs for 6× lead-acid), it delivers 60+ miles per charge, 1,000 CCA dual-purpose capability, Even-Heat cold charging, and 5,000 cycle lifespan. Fits Club Car, EZ-GO, Yamaha, and all 48V carts.
Key Features
- ✓ 60+ mile range per charge — 135Ah capacity at 48V (6,912Wh total) outlasts any lead-acid setup. Play multiple rounds without recharging.
- ✓ 108.8 lbs total — 65% lighter than the 6-8 lead-acid batteries it replaces. Your cart accelerates faster, handles better, and uses less energy per mile.
- ✓ Even-Heat Technology — charge safely below freezing. Use your cart year-round without cold weather battery damage.
- ✓ 1,000 CCA per battery — dual purpose design handles motor controller inrush current up to 650A without hesitation.
- ✓ 5,000 cycle lifespan — at one charge per day, that’s 13+ years of daily use. 11-year warranty backs it up.
- ✓ Drop-in replacement — Group 24 size per battery, F12 terminal posts. Fits standard battery trays with included series cables.
- ✓ Flat voltage curve — full speed and torque from hole 1 to hole 18. No “afternoon sag” like lead-acid.
- ✓ Active BMS per battery — independent protection on each unit. One cell imbalance doesn’t take down the whole system.
Technical Specifications
| System Voltage | 51.2V (4× 12.8V in series) |
|---|---|
| Capacity | 135Ah per battery / 6,912Wh total |
| Weight (per battery) | 27.2 lbs (12.3 kg) |
| Total Set Weight | 108.8 lbs (49.2 kg) |
| Dimensions (each) | 9.5 × 6.9 × 8.22 in (242.5 × 176 × 209 mm) |
| Group Size | Group 24 equivalent (each) |
| CCA | 1,000 per battery |
| Continuous Discharge | 100A |
| Peak Discharge | 650A (10-second pulse) |
| Motor Controller Limit | Up to 400A controller |
| Max Charge Current | 50A per battery |
| Charge Voltage | 57.6V system (14.4V per battery) |
| Cycle Life | 5,000 cycles to 80% capacity |
| Even-Heat | Yes — all 4 batteries heated for cold-weather charging |
| BMS | Active per battery (independent protection) |
| Terminals | F12 posts (15 ft-lbs max, 5 ft-lbs on adapters) |
| Range | 60+ miles (135Ah) / 25+ miles (60Ah option) |
| Certifications | UL1642, IEC62133, UN 38.3, ISO 9001:2015 |
| Warranty | 11 years (manufacturer defect) |
Cart Compatibility
- Club Car — Precedent, DS, Onward, Tempo (all 48V models)
- EZ-GO — RXV, TXT 48V, Freedom series
- Yamaha — Drive, Drive2, G29 (48V models)
- Polaris Ranger EV — replaces all 8 lead-acid batteries (per customer reviews)
- Star EV, Tomberlin, Garia — any 48V electric vehicle with standard battery trays
Weight Comparison
| DL+ 48V 135Ah Set (4 batteries) | 108.8 lbs |
|---|---|
| 6× Trojan T-105 (6V lead-acid) | ~384 lbs |
| 8× US Battery US8VGC (6V) | ~504 lbs |
| Weight saved | 275-395 lbs |
Less weight = faster acceleration, better hill climbing, less tire/suspension wear, and 15-25% more range from the same Wh.
Compatible Accessories
- 48V 15A Ultra Fast Charger — purpose-built LiFePO4 charger, full charge in ~9 hours
- Marine 4-Bank 40A Charger (10A/bank) — charges each battery individually, balances cells across the set
- Marine Battery Trays (4-pack) — secure Group 24 mounting for all four batteries
- Terminal Fuse Block Kit 58V/60A — overcurrent protection for the 48V system
Installation Notes
- Wire the 4 batteries in series: Battery 1 positive → motor controller positive. Battery 1 negative → Battery 2 positive. Continue series chain. Battery 4 negative → motor controller negative.
- Use the SAME gauge cable as your existing lead-acid setup (typically 4 AWG or 2 AWG).
- Reprogram your golf cart’s onboard charger for LiFePO4 profile (57.6V max). If your charger isn’t programmable, replace with the 48V 15A LiFePO4 charger.
- Do NOT use a standard lead-acid golf cart charger — they charge to 58.8V+ which exceeds the BMS cutoff and can damage cells.
FAQ
Will my existing golf cart charger work?
Almost certainly not. Most stock golf cart chargers are designed for lead-acid (58.8V charge target) which exceeds the LiFePO4 safe limit (57.6V max). You need a 48V LiFePO4 charger — either the Dakota Lithium 48V 15A or the 4-Bank charger that charges each 12V battery individually. Some aftermarket chargers have a “lithium” setting that works.
How do I know if my cart is 48V?
Count your existing batteries: 6× 8V batteries = 48V, 8× 6V batteries = 48V, 4× 12V batteries = 48V. If you have 6× 6V batteries, you have a 36V cart — this set won’t work (you need the 36V 60Ah single-case battery instead).
60 miles on a single charge — really?
Yes, on flat terrain at moderate speed. The 135Ah at 48V delivers 6,912Wh. A typical golf cart consumes 100-120Wh per mile on flat ground. That’s 55-70 miles per charge. Hills, heavy passengers, and high speed reduce this. Most golfers get 4-5 full 18-hole rounds per charge.
Can I use this for a 36V cart?
No. This is a 4-battery series set producing 51.2V. For 36V carts, use 3 of the DL+ 12V 135Ah batteries in series, or the single-case 36V 60Ah battery.
Warranty & Certifications
11-year manufacturer warranty on all 4 batteries. Each battery has independent BMS protection and carries its own serial number. Certified UL1642, IEC62133, UN 38.3. Manufactured in ISO 9001:2015 facilities.
